DM-32RS385 6~24V DC Spur Gear Motor


Diamater: 32mm
Voltage: 6V~24VDC
Speed: 3RPM~1500RPM
Torque: 0.3kg.cm~16kg.cm

Diamater: 32mm                                                                    1. CW/CCW

Voltage: 6V~24VDC                                                               2. Electric Brush/Carbon Brush

Speed: 3RPM~1500RPM                                                       3. Spur Gears

Torque: 0.3kg.cm~16kg.cm                                                    4. Metal Gearbox





Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Contact
  • 产品描述
  • 产品参数
    • Commodity name: DM-32RS385 6~24V DC Spur Gear Motor
    • Commodity ID: 1016346459693211648
    • Motor Diameter: 32mm
    • Motor Type: Round Shape
    • Shaft Out Method: Center Shaft
    • Rated Torque: 2-5kgf.cm
    • Application Area: Security

    <br/>Diamater: 32mm    <br/>Voltage: 6V~24VDC <br/>Speed: 3RPM~1500RPM <br/>Torque: 0.3kg.cm~16kg.cm

    Diamater: 32mm                                                                    1. CW/CCW

    Voltage: 6V~24VDC                                                               2. Electric Brush/Carbon Brush

    Speed: 3RPM~1500RPM                                                       3. Spur Gears

    Torque: 0.3kg.cm~16kg.cm                                                    4. Metal Gearbox





    Typical applications:
    Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

    Key words:
    • 300 rpm gear motor

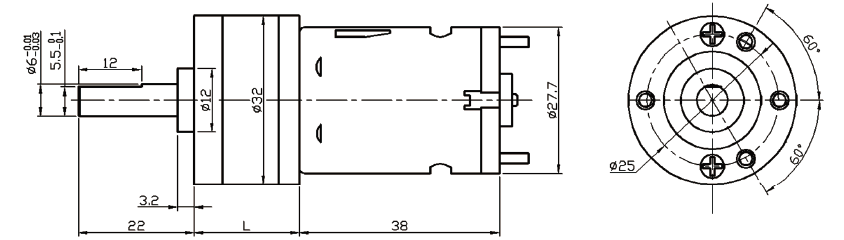

  • Product Dimensions(unit:mm):

    pic

    Gearbox Data:

    Number of stages 2 3 4 5 6 7
    Reduction Ratio i 5.75 13、15 28、32、38 61、71、83、 96 135、156、182 211、245 296、344、400 464、540、627
    Gearbox Length L (mm) 17.5 20 22.5 25 27.5 30
    Breaking Torque(kgf.cm) 8 10 15 20 20 24
    Gearbox Efficiency 81% 73% 65% 48% 43% 48%

    Driving Motor Data:

    DC Motor Model Rated No Load Max Efficiency Load Stall
    Volt. Current Speed Current Speed Torque P.out Torque Current
    V mA r/min mA r/min gf.cm W gf.cm mA
    DM-385-012-3000 12 ≤60 3000 ≤150 2200 35 0.8 ≥110 ≥360
    DM-385-012-4500 12 ≤70 4500 ≤300 3300 55 1.9 ≥210 ≥960
    DM-385-012-6000 12 ≤100 6000 ≤600 4500 80 3.7 ≥280 ≥1600
    DM-385-024-3000 24 ≤28 3000 ≤70 2200 35 0.8 ≥110 ≥160
    DM-385-024-4500 24 ≤50 4500 ≤150 3300 55 1.9 ≥180 ≥380

    Geared Motor Data:

    Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
    Current Speed Current Speed Torque P.out Torque Current
    V A r/min A r/min kgf.cm W kgf.cm A
    DM-32RS385-3.617000-5.75K 3.6 1.3 2415.4 4.57 1809.7 0.27 5.03 1.1 14.36
    DM-32RS385-0129000-82K 12 0.24 112.6 0.89 90.4 2.8 2.59 14.0 3.56
    DM-32RS385-0244500-400K 24 0.07 9.9 0.19 6.8 11.0 0.82 38.0 0.45
    The motor parameters are for reference only,please refer to real measured data;
    We can customize parameters according to customer requirements.
    Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
    Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
