DM-33RS3530


DC Spur Gear motor
Diamater: 33mm
Voltage: 12V~24VDC
Speed: 3RPM~300RPM
Torque: 0.3kg.cm~10kg.cm

Diamater: 33mm                                                 1. CW/CCW

Voltage: 12V~24VDC                                          2. Electric Brush/Carbon Brush

Speed: 3RPM~300RPM                                      3. Spur Gears

Torque: 0.3kg.cm~10kg.cm                                 4. Metal Gearbox



Customization: Rated Speed, Rated Torque, Voltage,  Current, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle



Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

  • 产品描述
  • 产品参数
    • Commodity name: DM-33RS3530
    • Commodity ID: 1016348031416360960

    <br/>DC Spur Gear motor <br/>Diamater: 33mm  <br/>Voltage: 12V~24VDC  <br/>Speed: 3RPM~300RPM  <br/>Torque: 0.3kg.cm~10kg.cm

    Diamater: 33mm                                                 1. CW/CCW

    Voltage: 12V~24VDC                                          2. Electric Brush/Carbon Brush

    Speed: 3RPM~300RPM                                      3. Spur Gears

    Torque: 0.3kg.cm~10kg.cm                                 4. Metal Gearbox



    Customization: Rated Speed, Rated Torque, Voltage,  Current, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle



    Typical applications:
    Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

    Key words:
    • 30 rpm gear motor
    • electric dc gear motor 12v
    • 12 volt electric motor with gearbox

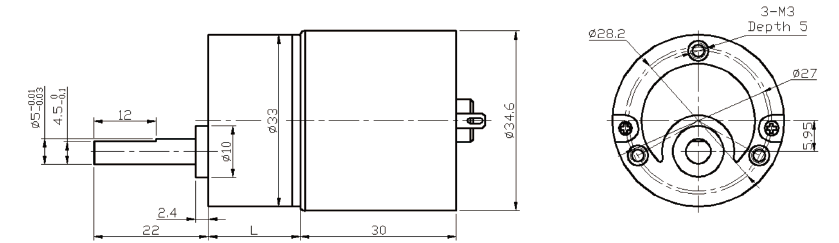

  • Product Dimensions(unit:mm):

    pic



     Gear Ratio:

    Number of stages 3 4 5 6 7
    Reduction Ratio i 20 50 125 312.5 781
    Gearbox Length L (mm) 17.7 19.9 22.2 24.4 26.75
    Breaking Torque(kgf.cm) 10 15 20 24 24
    Gearbox Efficiency 73% 65% 59% 53% 48%

    DC Gear Motor Reference Datas:

    Remarks: The above datas in chart are only for reference. We can custom rated speed, rated torque and voltage for you.

    Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
    Current Speed Current Speed Torque P.out Torque Current
    V A r/min A r/min kgf.cm W kgf.cm A
    DM-33RS3530-0067500-125K 6 0.22 54.2 1.22 45.6 5.8 2.72 36.6 6.51
    DM-33RS3530-0124500-312.5K 12 0.03 14.6 0.14 12.4 5.0 0.66 34.9 0.81
    DM-33RS3530-0126000-312. 5K 12 0.07 19.1 0,43 19.1 9.9 1 .65 67.1 2.54
    The motor parameters are for reference only,please refer to real measured data;
    We can customize parameters according to customer requirements.
    Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
    Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)



    DC Motor Reference Datas:

    Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

    DC Motor Model Rated No Load Max Efficiency Load Stall
    Volt. Current Speed Current Speed Torque P.out Torque Current
    V mA r/min mA r/min gf.cm W gf.cm mA
    DM-3530-012-3000 12 ≤40 3000 ≤240 2200 40 0.9 ≥160 ≥700
    DM-3530-012-4500 12 ≤60 4500 ≤450 3300 50 1.7 ≥300 ≥1400
    DM-3530-012-6000 12 ≤90 6000 ≤700 4500 60 2.8 ≥350 ≥2000
    DM-3530-024-3000 24 ≤20 3000 ≤150 2200 40 0.9 ≥160 ≥400
    DM-3530-024-4500 24 ≤30 4500 ≤230 3300 50 1.7 ≥220 ≥60
