DM-37RS385 dc gearhead motor


Diamater: 37mm
Voltage: 6V~24VDC
Speed: 6RPM~500RPM
Torque: 0.6kg.cm~30kg.cm

Diamater: 37mm                                                           1. CW/CCW

Voltage: 6V~24VDC                                                      2. Electric Brush/Carbon Brush

Speed: 6RPM~500RPM                                                3. Spur Gears

Torque: 0.6kg.cm~30kg.cm                                           4. Metal Gearbox







Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Contact
  • 产品描述
  • 产品参数
    • Commodity name: DM-37RS385 dc gearhead motor
    • Commodity ID: 1016348445230587904
    • Motor Diameter: 37mm
    • Motor Type: Round Shape
    • Shaft Out Method: Eccentric Shaft
    • Rated Torque: 5-10kgf.cm
    • Application Area: Security

    <br/>Diamater: 37mm  <br/>Voltage: 6V~24VDC <br/>Speed: 6RPM~500RPM <br/>Torque: 0.6kg.cm~30kg.cm

    Diamater: 37mm                                                           1. CW/CCW

    Voltage: 6V~24VDC                                                      2. Electric Brush/Carbon Brush

    Speed: 6RPM~500RPM                                                3. Spur Gears

    Torque: 0.6kg.cm~30kg.cm                                           4. Metal Gearbox







    Typical applications:
    Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

    Key words:
    • 24v brushed dc motor
    • dc gearhead motor
    • 12v dc motor gearbox
    • electric gear motor 12v

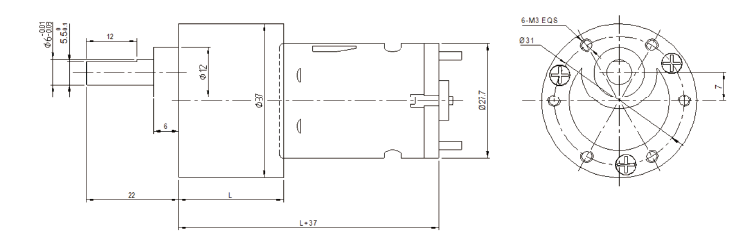

  • Product Dimensions(unit:mm):

    pic

    Gearbox Data:

    Number of stages 2 3 4 5 6 7
    Reduction Ratio i 6、8、10 20、30 61、90 107、122、 184、270 311、414、 552、810 1243 1657、2430
    Gearbox Length L (mm) 19 22.5 25 27.5 30 31.5
    Breaking Torque(kgf.cm) 8 10 30 30 40 40
    Gearbox Efficiency 81% 72% 65% 59% 53% 47%

    Driving Motor Data:

    DC Motor Model Rated No Load Max Efficiency Load Stall
    Volt. Current Speed Current Speed Torque P.out Torque Current
    V mA r/min mA r/min gf.cm W gf.cm mA
    DM-385-012-3000 12 ≤60 3000 ≤150 2200 35 0.8 ≥110 ≥360
    DM-385-012-4500 12 ≤70 4500 ≤300 3300 55 1.9 ≥210 ≥960
    DM-385-012-6000 12 ≤100 6000 ≤600 4500 80 3.7 ≥280 ≥1600
    DM-385-024-3000 24 ≤28 3000 ≤70 2200 35 0.8 ≥110 ≥160
    DM-385-024-4500 24 ≤50 4500 ≤150 3300 55 1.9 ≥180 ≥380

    Geared Motor Data:

    Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
    Current Speed Current Speed Torque P.out Torque Current
    V A r/min A r/min kgf.cm W kgf.cm A
    DM-37RS385-0126000-61K 12 0.20 94.8 0,66 70.2 3.2 2.36 12.6 1,96
    DM-37RS385-0128000-534K 12 0.20 14.9 0.71 11.5 21.8 2.57 96.0 2.49
    DM-37 RS385-0243000-61K 24 0.05 51.2 0.12 36.3 1,90 0.70 6.50 0.30
    DM-37RS385-0243000-552K 24 0.03 5.50 0.09 4.50 14.0 0.65 73.0 0.37
    The motor parameters are for reference only,please refer to real measured data;
    We can customize parameters according to customer requirements.
    Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
    Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
