DM-33RS528 12v dc motor with gearbox


Diamater: 33mm
Voltage: 6V~24VDC
Speed: 3RPM~373RPM
Torque: 0.3kg.cm~9kg.cm

Diamater: 33mm                                                       1. CW/CCW

Voltage: 6V~24VDC                                                  2. Electric Brush/Carbon Brush

Speed: 3RPM~373RPM                                            3. Spur Gears

Torque: 0.3kg.cm~9kg.cm                                         4. Metal Gearbox







Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Contact
  • 产品描述
  • 产品参数
    • Commodity name: DM-33RS528 12v dc motor with gearbox
    • Commodity ID: 1016347578980982784
    • Motor Diameter: 33mm
    • Motor Type: Round Shape
    • Shaft Out Method: Eccentric Shaft
    • Rated Torque: 5-10kgf.cm
    • Application Area: Security

    <br/>Diamater: 33mm  <br/>Voltage: 6V~24VDC  <br/>Speed: 3RPM~373RPM <br/>Torque: 0.3kg.cm~9kg.cm

    Diamater: 33mm                                                       1. CW/CCW

    Voltage: 6V~24VDC                                                  2. Electric Brush/Carbon Brush

    Speed: 3RPM~373RPM                                            3. Spur Gears

    Torque: 0.3kg.cm~9kg.cm                                         4. Metal Gearbox







    Typical applications:
    Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

    Key words:
    • 12v dc motor with gearbox
    • 12v dc motor mit getriebe

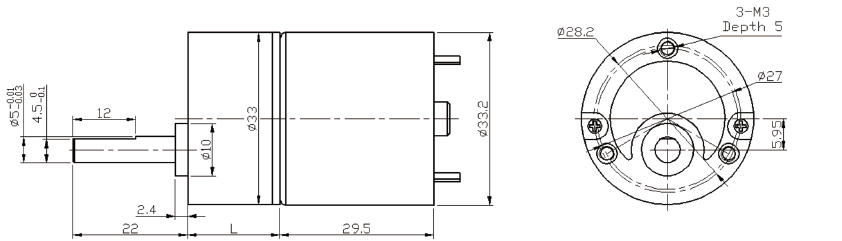

  • Product Dimensions(unit:mm):

    pic

    Gearbox Data:

    Number of stages 3 4 5 6 7
    Reduction Ratio i 20 50 125 312.5 781
    Gearbox Length L (mm) 17.7 19.9 22.2 24.4 26.75
    Breaking Torque(kgf.cm) 10 15 20 24 24
    Gearbox Efficiency 73% 65% 59% 53% 48%

    Driving Motor Data:

    DC Motor Model Rated No Load Max Efficiency Load Stall
    Volt. Current Speed Current Speed Torque P.out Torque Current
    V mA r/min mA r/min gf.cm W gf.cm mA
    DM-528-012-3000 12 ≤40 3000 ≤180 2200 40 0.9 ≥160 ≥720
    DM-528-012-4500 12 ≤60 4500 ≤350 3300 60 2.0 ≥210 ≥1400
    DM-528-012-6000 12 ≤70 6000 ≤720 4500 80 3.7 ≥300 ≥2800
    DM-528-024-3000 24 ≤15 3000 ≤80 2200 40 0.9 ≥140 ≥320
    DM-528-024-4500 24 ≤25 4500 ≤180 3300 60 2.0 ≥210 ≥730

    Geared Motor Data:

    Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
    Current Speed Current Speed Torque P.out Torque Current
    V A r/min A r/min kgf.cm W kgf.cm A
    DM-33RS528-0124500-20K 12 0.06 210.2 0.22 173.2 0.6 1.09 3.0 1.01
    DM-33RS528-0244000-312.5K 24 0.03 13.1 0.08 9.9 4.7 0.48 19.0 0.27
    The motor parameters are for reference only,please refer to real measured data;
    We can customize parameters according to customer requirements.
    Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
    Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
